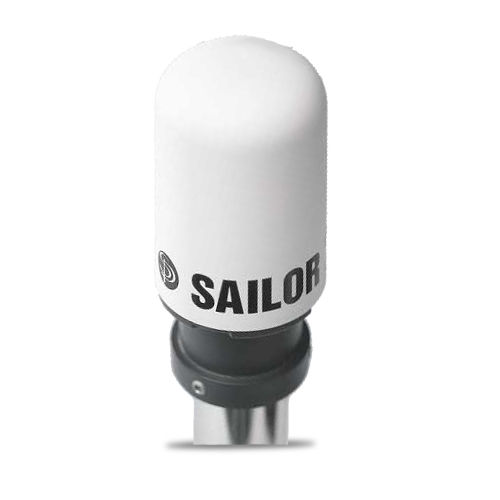

SAILOR SC4000 Iridium Antenna-SA4110
Cobham Iridium Sailor SA4110 antenna is designed to provide superior performance for maritime communication set-ups, it can also be integrated with a PBX system. Designed for the Sailor Iridium SC4000 terminal, however is also compatible with other Iridium systems for permanent in-building or marine applications when no ground plane is available. In spite of its very slim and delicate design, the SAILOR SC4000 antenna is very robust. It has no moving parts, and the helix construction is coated with glass-enforced epoxy, which is highly weather resistant and able to withstand the extreme conditions at sea. This antenna uses an N type connector.
Application for the SA4110 Iridium Antenna
Fixed Remote Buildings
Emergency Rooms and Bunkers
Vessels cruising the High Seas
Cruising Yachts
Fishing Vessels
Coasters to Large Merchant Ships
Coast Guards to Naval Vessels
Box Content of the Sailor Iridium Antenna
Sailor SA4110 Antenna
Quick Start Guide
Instruction Manual
Part#: TT-01-80411000
Specifications
SPECIFICATIONS Part Number: TT-01-80411000 General specifications: Helical, omnidirectional antenna, 210° (3 dB bandwidth) Antenna dome: Fiberglass Link margin: 16 dB Elevation angle: From any direction 20° from horizontal Yaw: Satellite elevation > 8° ENVIRONMENTAL CONDITIONS Temperature: -35°C to +55°C Relative humidity: Up to 95% at 40°C Icing (survival only): Up to 25 mm of ice Precipitation: Up to 100 mm/hour Wind (velocity): Up to 100 knots Vibration: IME: 2 - 50 Hz +/- 1 g, and EME: 4 - 33 Hz +/- 1 g Dimensions ∅: 96 mm (3.8") Height: 140 mm (5.5")Product Reviews
